Musical Stenotype

A cheap and playable prototype that allows you to create poetry that is simultaneously music.

The musical stenotype was prototyped for the Hindes 2022 Prototyping Festival at the Exploratorium. It combines a MIDI keyboard along with stenography theory to produce novel compositions.

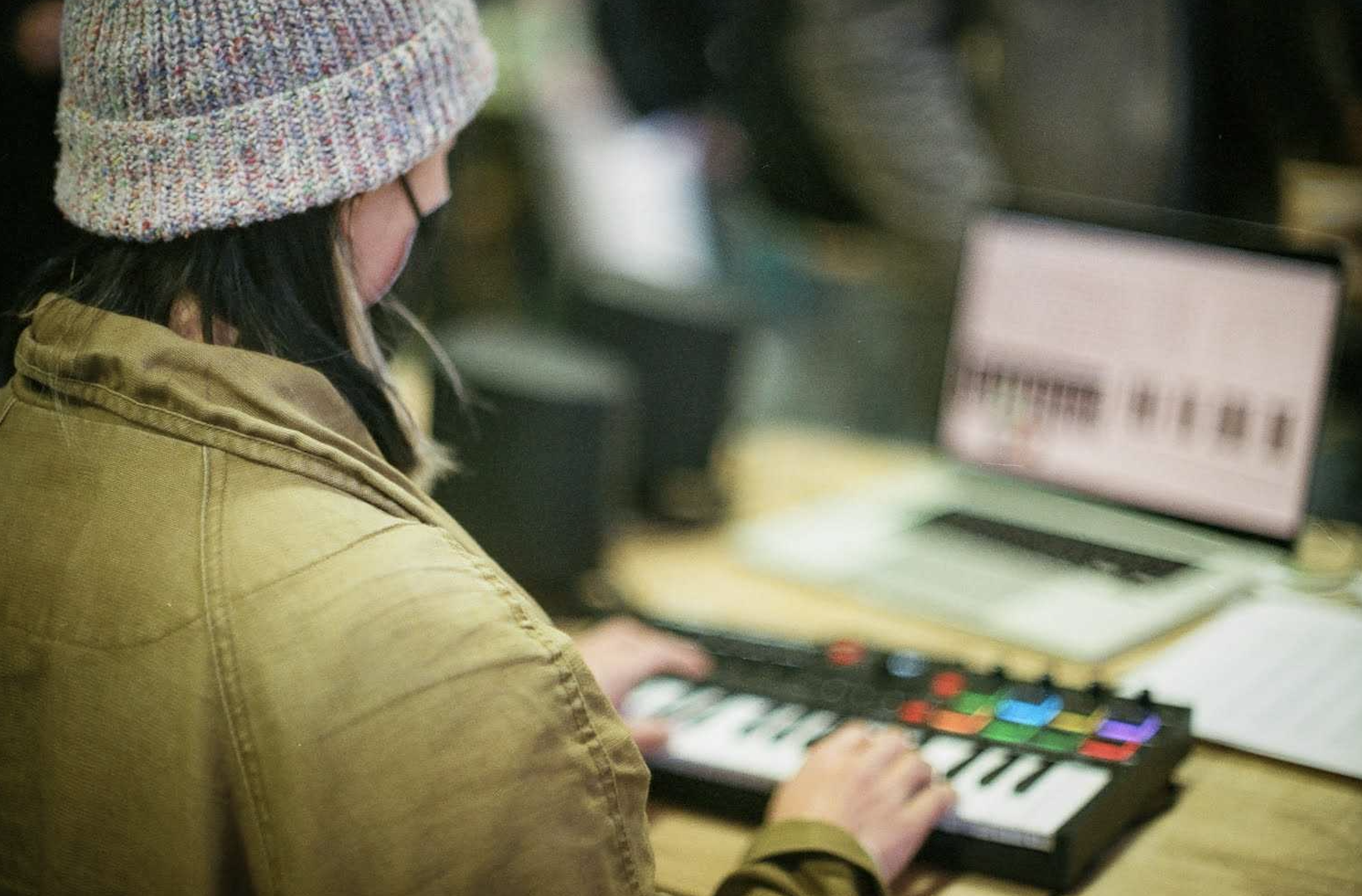

Photo of someone using the musical steno

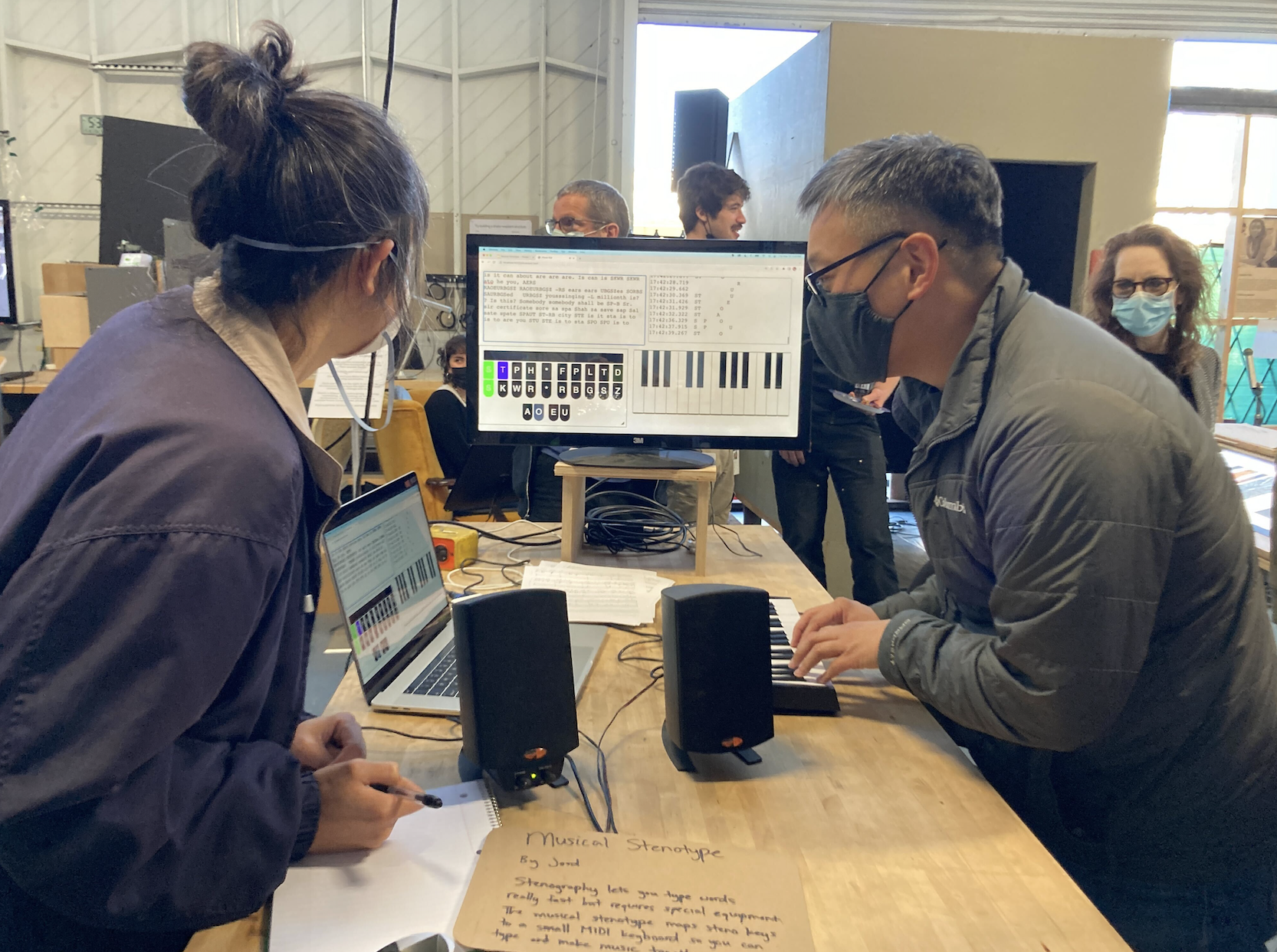

Photo of someone using the musical steno

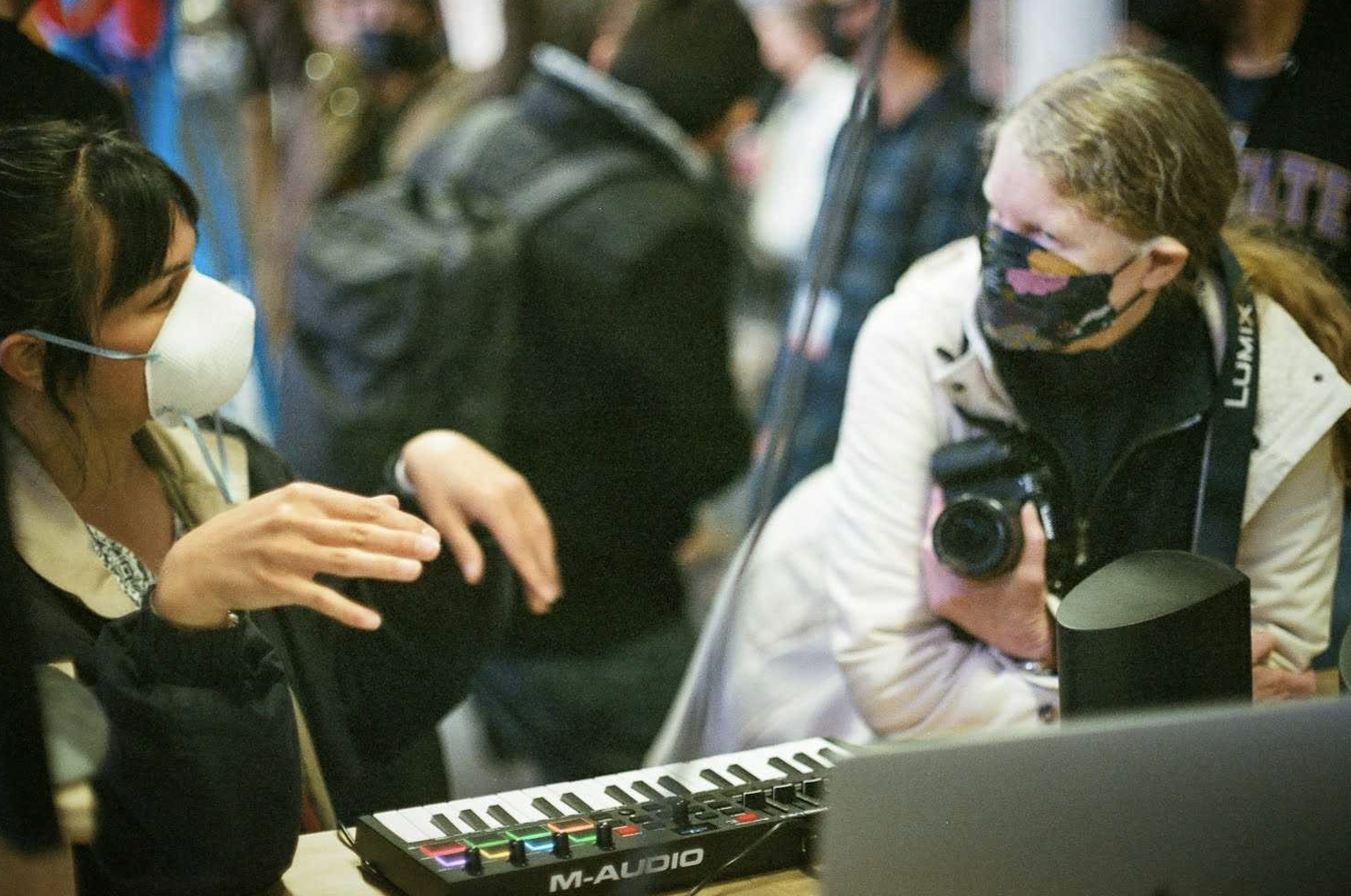

Photo of someone using the musical steno Hindes 2022 Exploratorium

About

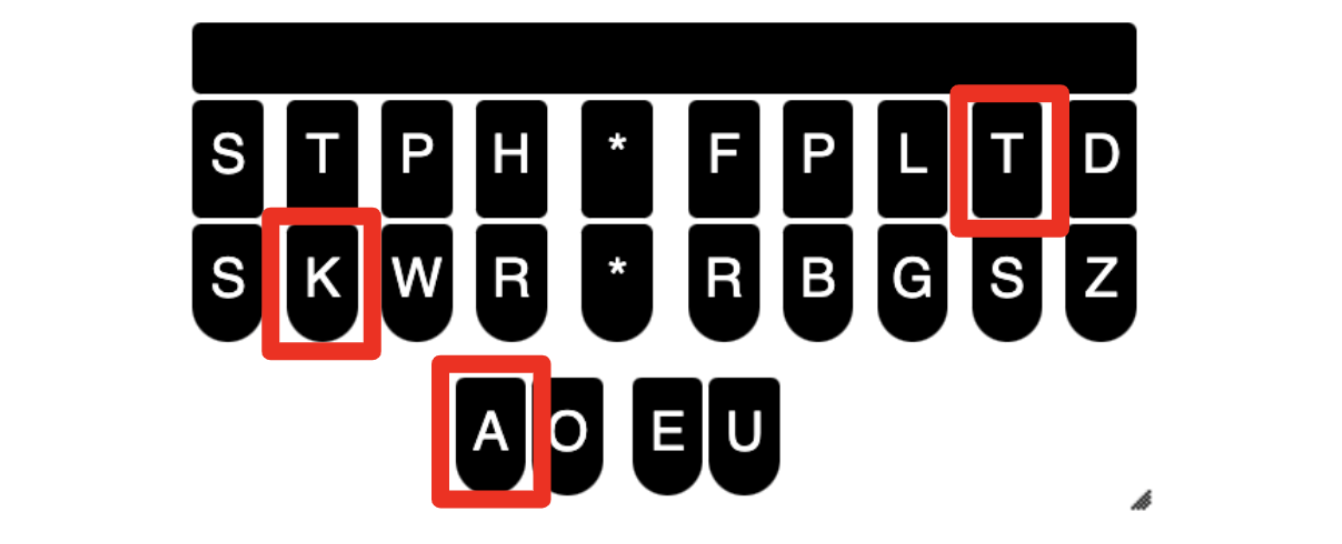

A stenotype is a specialty keyboard commonly used for courtroom transcriptions and live captioning which allows typists to achieve 200-300 wpm speeds. This is achieved through typing multiple keys at the same time. Specifically, the left hand types sounds at the beginning of a word, the thumbs type sounds in the middle of the word, and the right hand types sounds at the end of the word. To type the word “cat” for instance, you would hold down a K on the left, an A in the middle, and a T on the right.

Diagram showing how to type KAT

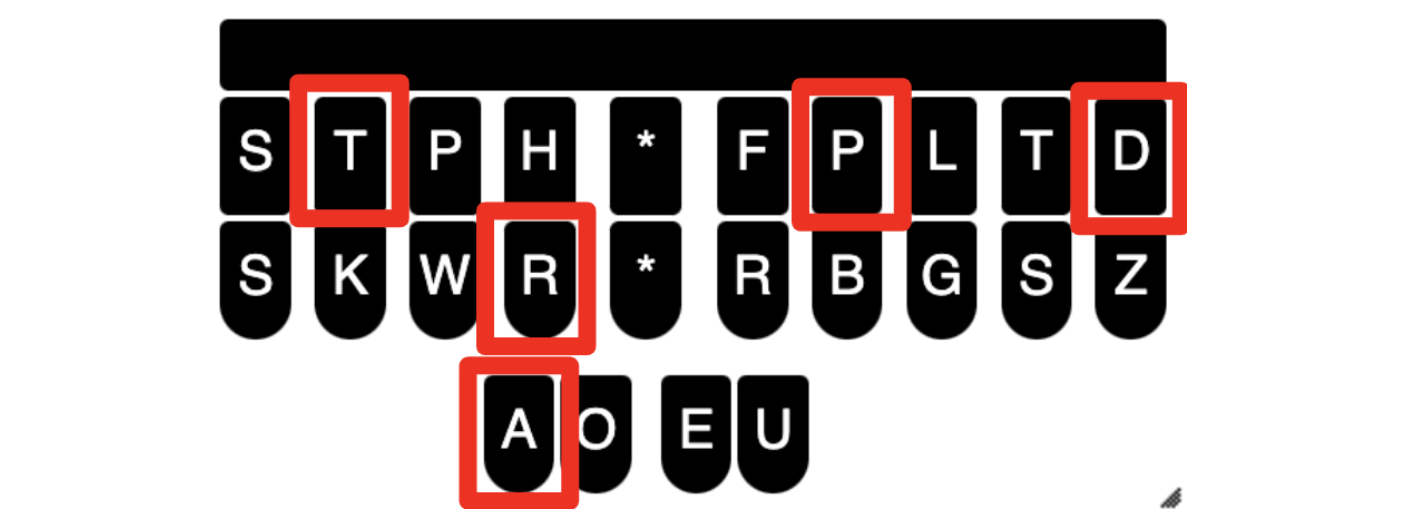

Unstressed parts of a word can also be omitted, allowing you to type multi-syllabic words in a single stroke.

Diagram showing how to type KAT

For the missing letters on the keyboard there are special key combinations. For instance, pressing E and U together gives you I. Pressing TKPW gives you J. Stenographic theory is customizable and tends to be a combination of phonetic rules and memorization.

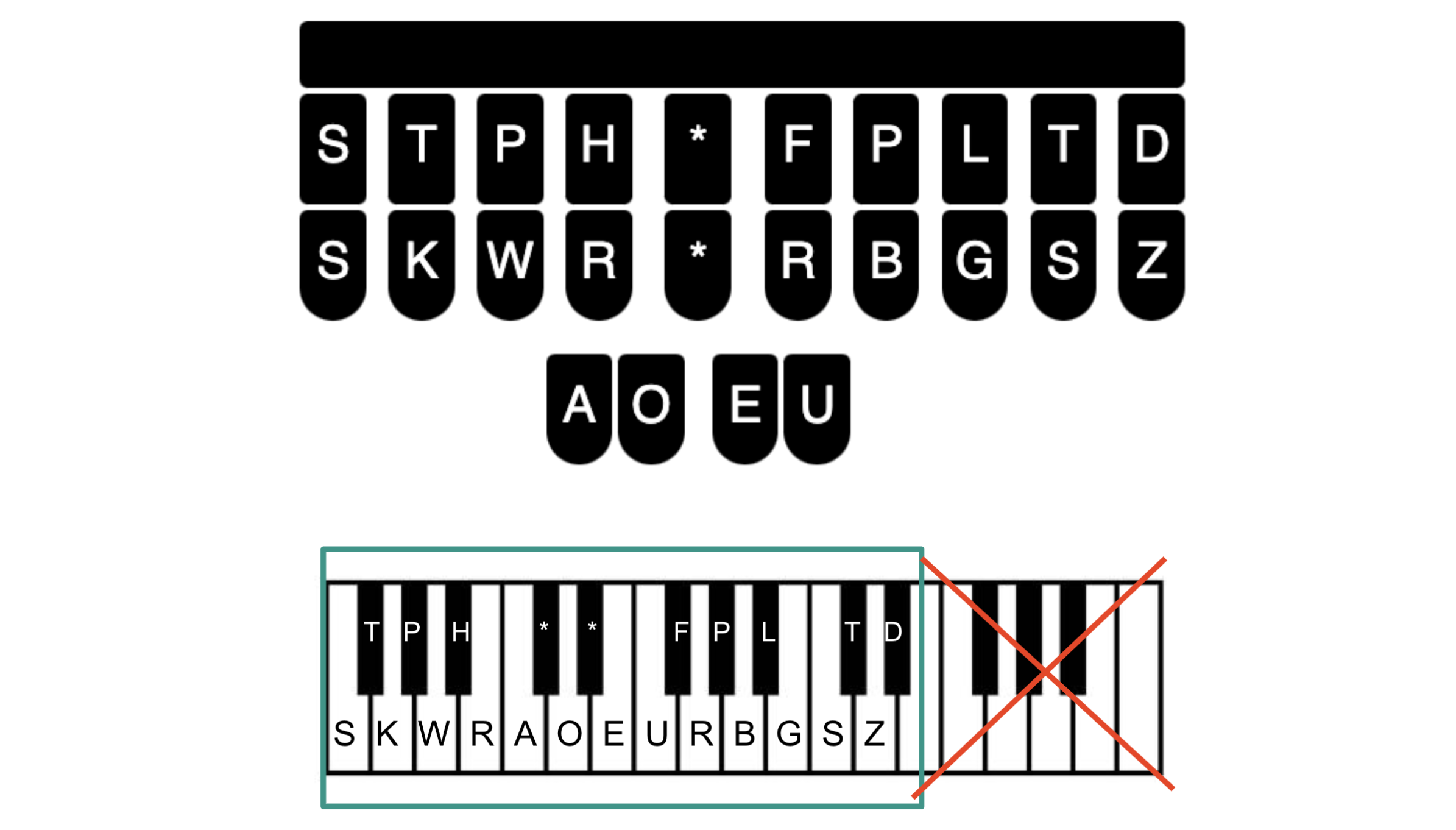

The musical stenotype I invented is a combination of a stenotype and a piano keyboard. Real stenotypes cost upwards of $3000 while a 2 octave MIDI keyboard costs $40. We can map the keys of a stenotype directly onto such a MIDI keyboard as shown here.

Diagram showing the key layout of the musical stenotype

Now we have a cheap playable USB stenotype. As an added bonus, each keypress also plays a piano tone which means your brain forms more associations as it learns to type. You might notice that a word is misspelled when it doesn’t match the musical chord you expect.

Since steno is mostly phonetic, chords which sound similar produce similar sounding words. If you play two chords where the left hand is slightly different, you get two words with similar ending sounds but different beginning sounds. In other words, rhyme. Similarly two chords where the right hand is slightly different gives you words with the same beginning but different ending, which results in alliteration.

In this way, the musical stenotype now allows you to compose pieces that are both poems that you write with steno, and musical pieces that you listen to.

Watch my steno poem “Human being” (or watch the live version with talk).

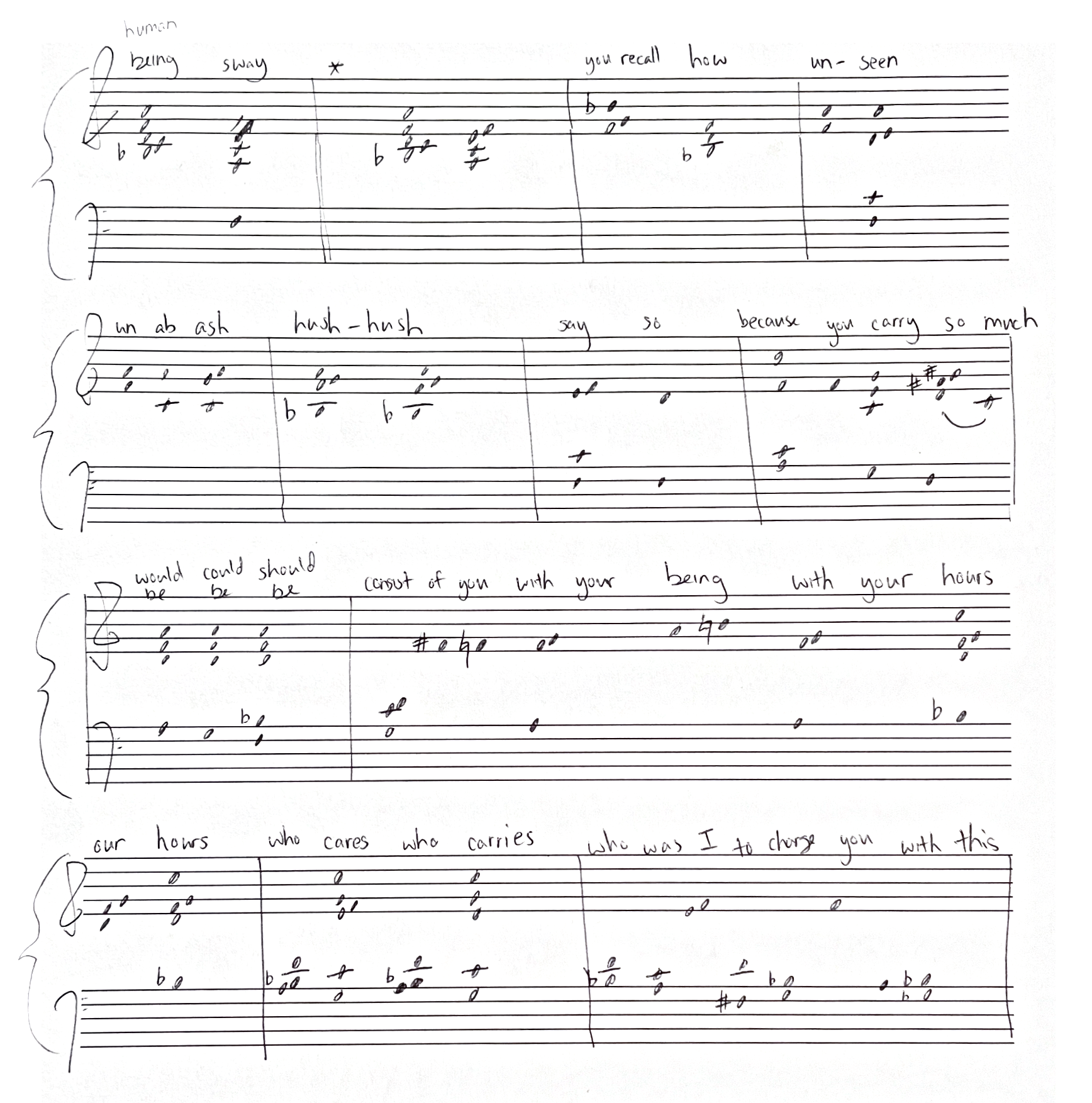

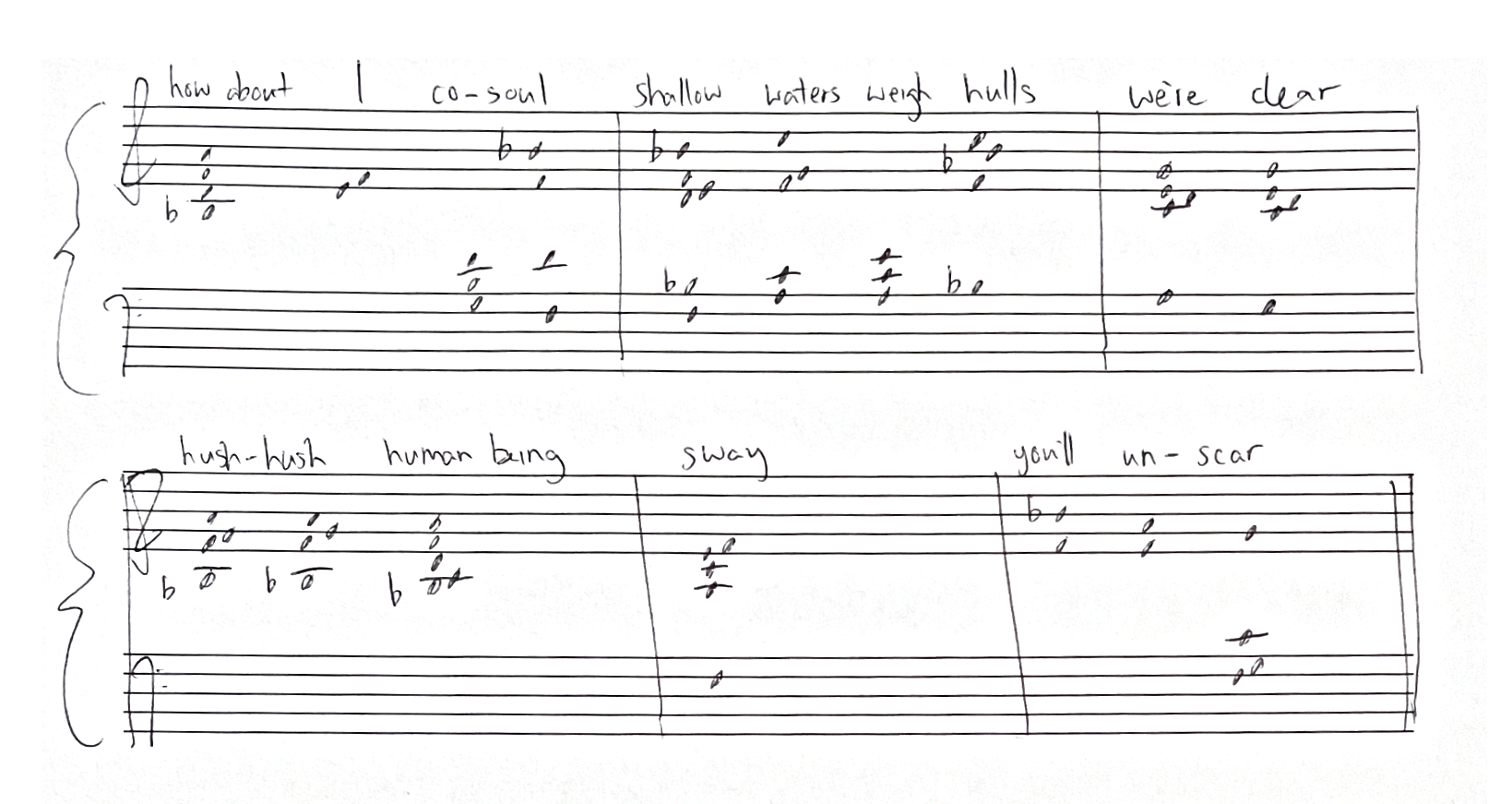

Sheet music for Human Being Sheet music for Human Being
